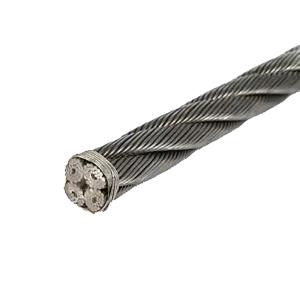

Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316

Product Categories
Chongqing Honghao Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316

Steel Grade : Type 316 Stainless Steel

Standard : AiSi

Place of Origin : Jiangsu

Type : Type 316 Stainless Steel

Application : Cable Rails

Alloy Or Not : Non-Alloy

Model Number : HH-548

Brand Name : Honghao

Tolerance : Other

Processing Service : Other

Grade : Type 316 Stainless Steel

Delivery Time : 7-30days according to quantity

Construction : 4xV39+5FC

Type of Core : Steel core

Coated or not : Non-coated

Package : Wooden Spool

OEM : Accept

MOQ : 1tons

Packaging Details : In Plastic Reel Or In Wooden Reel

Port : Shanghai,China

Supply Ability : 50000Tons/Month

Price : Negotiable

MOQ : 2000Meters

Certification : CE or ISO

Payment Terms : T/T or L/C ,paypal

Contact Now

Specification
item
value
Place of Origin
Chongqing, China
Brand Name
Honghao
Construction
4xV39+5FC
Type of Core
Steel core
Coated or not
Non-coated
Package
Wooden Spool
OEM
Accept
MOQ
1tons
Product Description
1.Selection of Wire Rope
Refer to GB8918-2006"Steel wire ropes for important purposes"and GB/T20018-2006"Steel wire ropes for general purposes"on how to select from different constructions of wire rope.Please also refer to this section of our product catalogue in selecting wire rope.We suggest choosing equal lay
steel wire rope,Compacted wire rope for general usage.The technical parameters such as lifting load,safety coefficient,and the lifting capacity of the lifting eauipment should be taken into conside ration when selecting the strenath class of wire rope.Do not blindly choose hiah strenath and high breaking force wire rope,this may compromise results.
2.Installation of Wire Rope Unwinding: Put a piece of iron tube through the reel or coil of wire rope,then install the reel onto a dedicated carrier.Keep the wire rope parallel to the ground and turn to unwind.The arrangement of wire rope on the reel:The winding direction of wire rope on the reel Should depend on the lay direction of wire rope from left to right for right-lay wire rope,from right to left for left-lay wire rope. Wind the wire rope neatly onto the reel without the wire rope overlapping each other.
Cutting: For wire rope with relatively high residual stress,use a soft iron wire to tie the rope 10-20mm from the cutting point.The length of the soft iron wire should be 1-4 times that of rope diameter.Then cut with cutting tool.
3.Maintenance and Inspection of Steel Wire Rope Operarion: In operation, the wire rope should be in steady speed,never overload,and never shock load a wire rope.
Maintenance: Lubricant is applied to the wires and strands of a wire rope when manufactured.This lubricant is depleted when the rope is in service.And various nocuous matters will stick to the surface of the rope.These will cause abrasion between wire rope and the block,and rusting of the rope.lt is important to clean and replace lubricant to the wire rope periodically.
Record of inspection: wire rope should be inspected regularly,and all the records should be kept carefully.Other than cleaning and adding lubricant,the inspection should include checking the following: abrasion of wire rope,condition of broken wires,and corrosion.Also check the condition of metal parts such as pulley groove,loading ring,hook,etc.Pay special attention and check for external and internal broken wires in the fixed end of wire rope,and the section of wire rope that passes through pulley blocks
and drums.
4.Contact between Wire Rope and Pulley Groove
The appropriate contact between pulley groove and wire rope is indicated in (figure 1).If the pulley groove is too wide(figure).
2),the wire rope and its metal core are subiect to more broken wires owing to fatigue. lf the pulley groove is too narrowf(igure).
3),the wire rope will be worn seriously. The ratio between the radius of pulley groove and that of the wre rope should be:R/d=0.525~0.550.
Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316
Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316
Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316
Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316
Recommend Products
Packing & Delivery
Non-Alloy 4xV39 5FC Eeips Steel Wire Rope for Marine Engineering Ship Crane Type 316
Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box or as per customer's requirements
